Sony ISP

This is my Arduino ISP project made with an old broken Sony Walkman.
While I was riding in my car and hit a bump I accidently came with my elbow
against the stick who was plugged into the carradio.
After this was happened my stick won't play and could not read data on the pc anymore.
I had it for a long time, several years, lying in a drawer.
At one day I needed an ISP for some Arduino projects
and came up with an idea to build it into this defected walkman.
See the result of this project below.

Mobirise

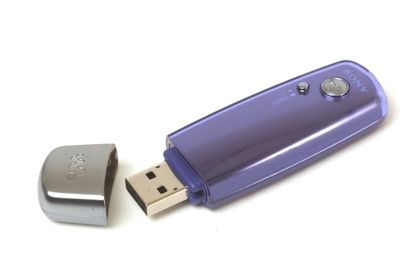

Sony
Walkman NW-E003

Device & dimensions: The Sony NW-E003 is a 25-gram flash mp3 player. The dimensions of the player are 2.50 x 7.90 x 1.40 centimeters. The playing time of the Li-Ion battery is (28 hours in succession). The Sony NW-E003 is available in black, pink, purple, blue and gray.

Memory and connectivity:      The Sony NW-E003 has 1 GB of internal memory. There are no camcorder expansion slots available. The Sony NW-E003 connects you to USB 2.0 via USB 2.0.

multimedia: With the Sony NW-E003 you can play MP3, WMA and ATRAC3 music files. The quality of these files is equal to CD quality. This Sony also features a built-in FM radio for live radio on the go .. A voicemail is missing below.

Translated from: http://www.portablegear.nl/sony/nw-e003/review/

Mobirise

Arduino ISP

For the example on how to use the ISP I used the following website:

http://glumb.de/en/arduino-as-isp-to-change-the-bootloader

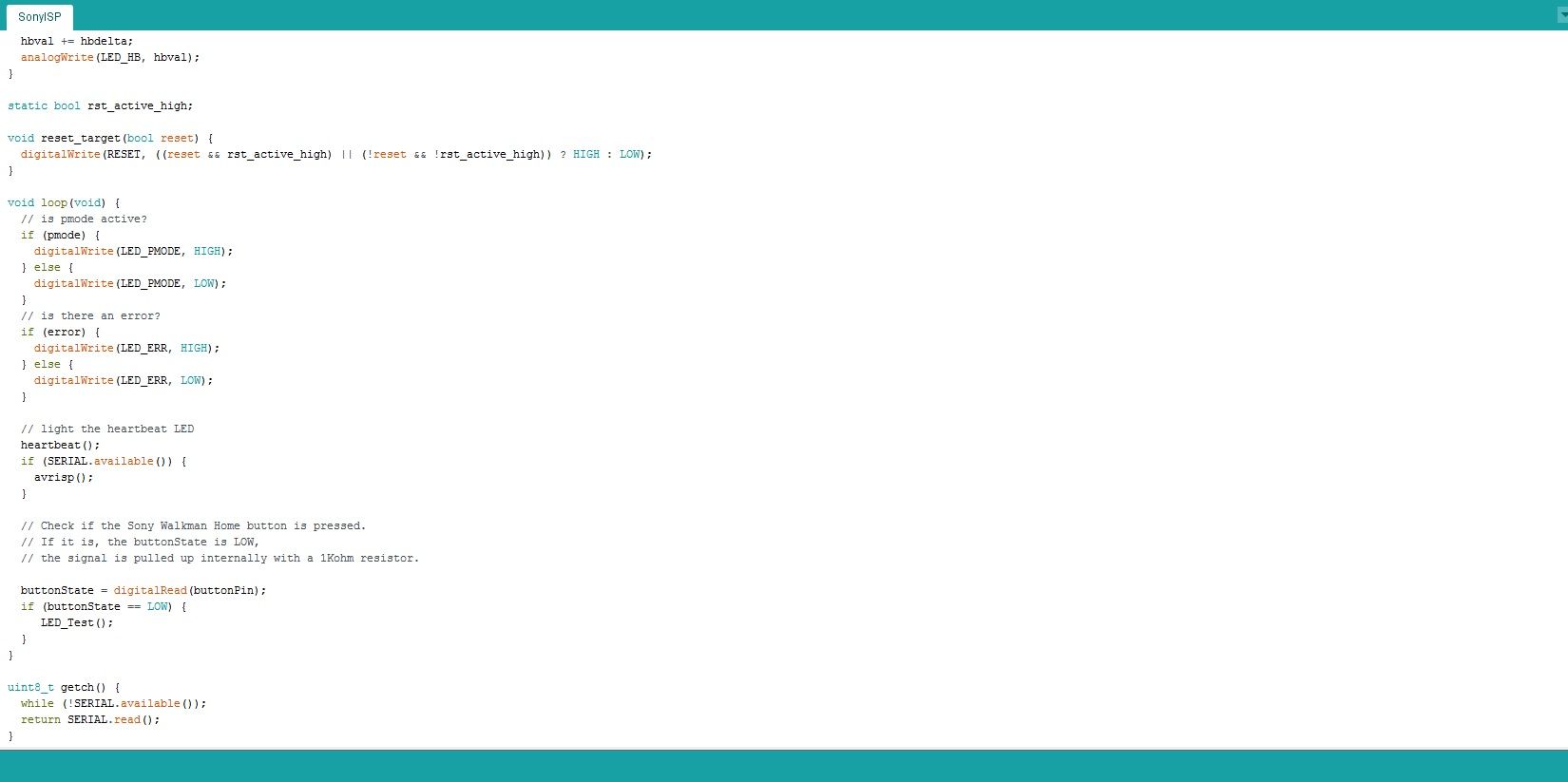

If you want to download my edited sketch file, click the following link: SonyISP.ino .

Mobirise

Original box

After all this years I found the original box from this walkman even completely with original manuals.
 These original manuals can, if you like, be downloaded here: NW-E003 User Manual

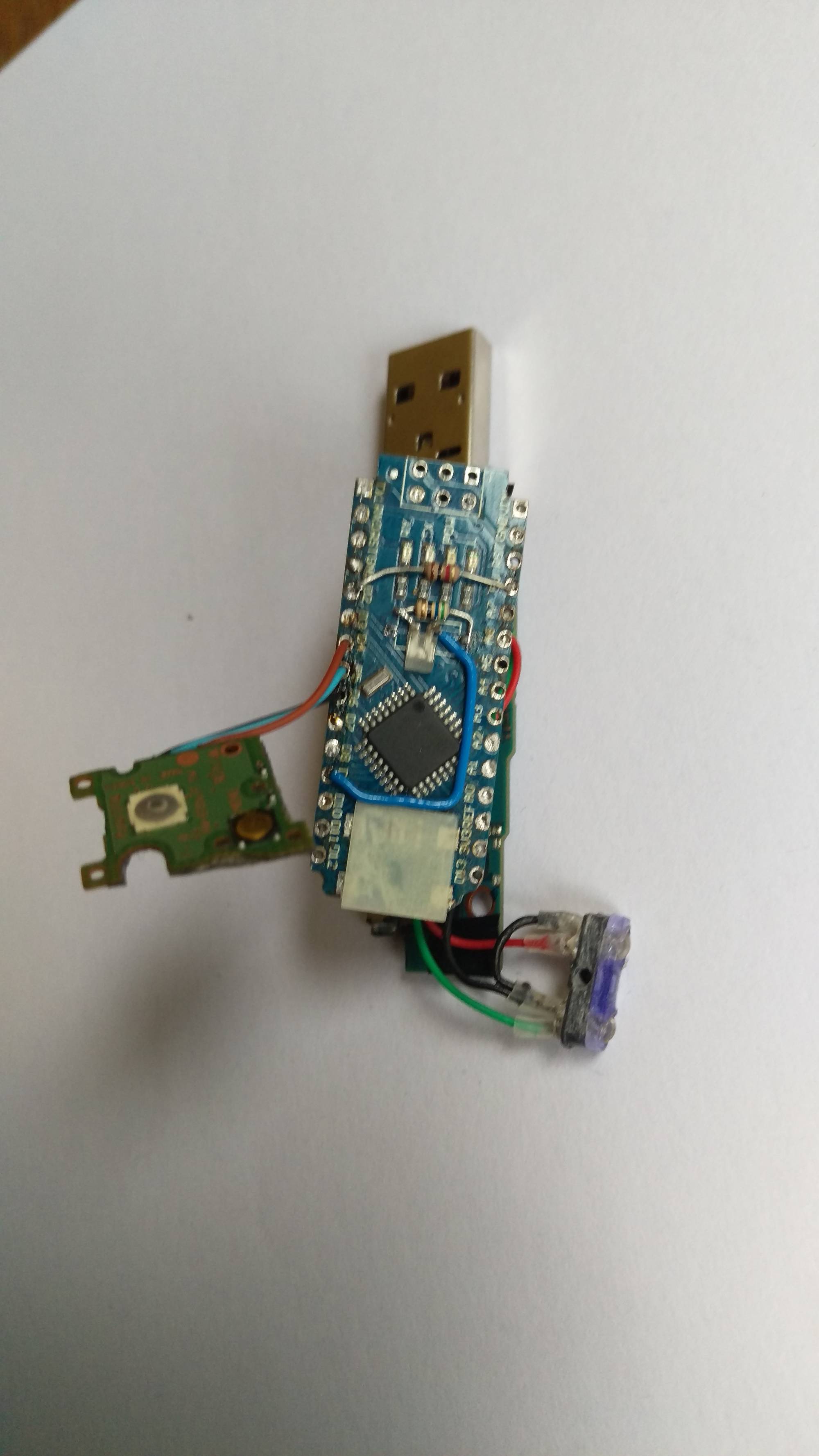

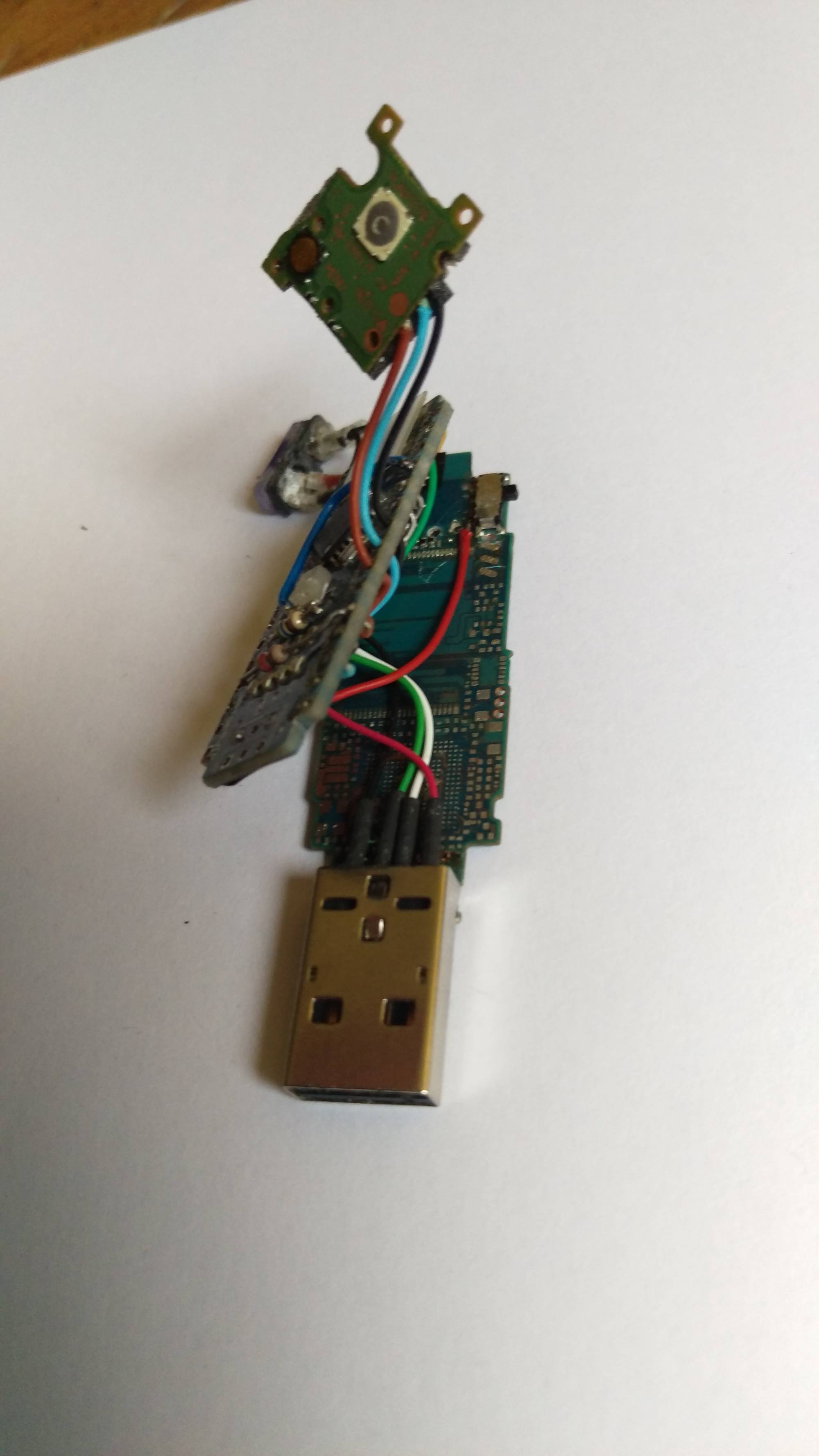

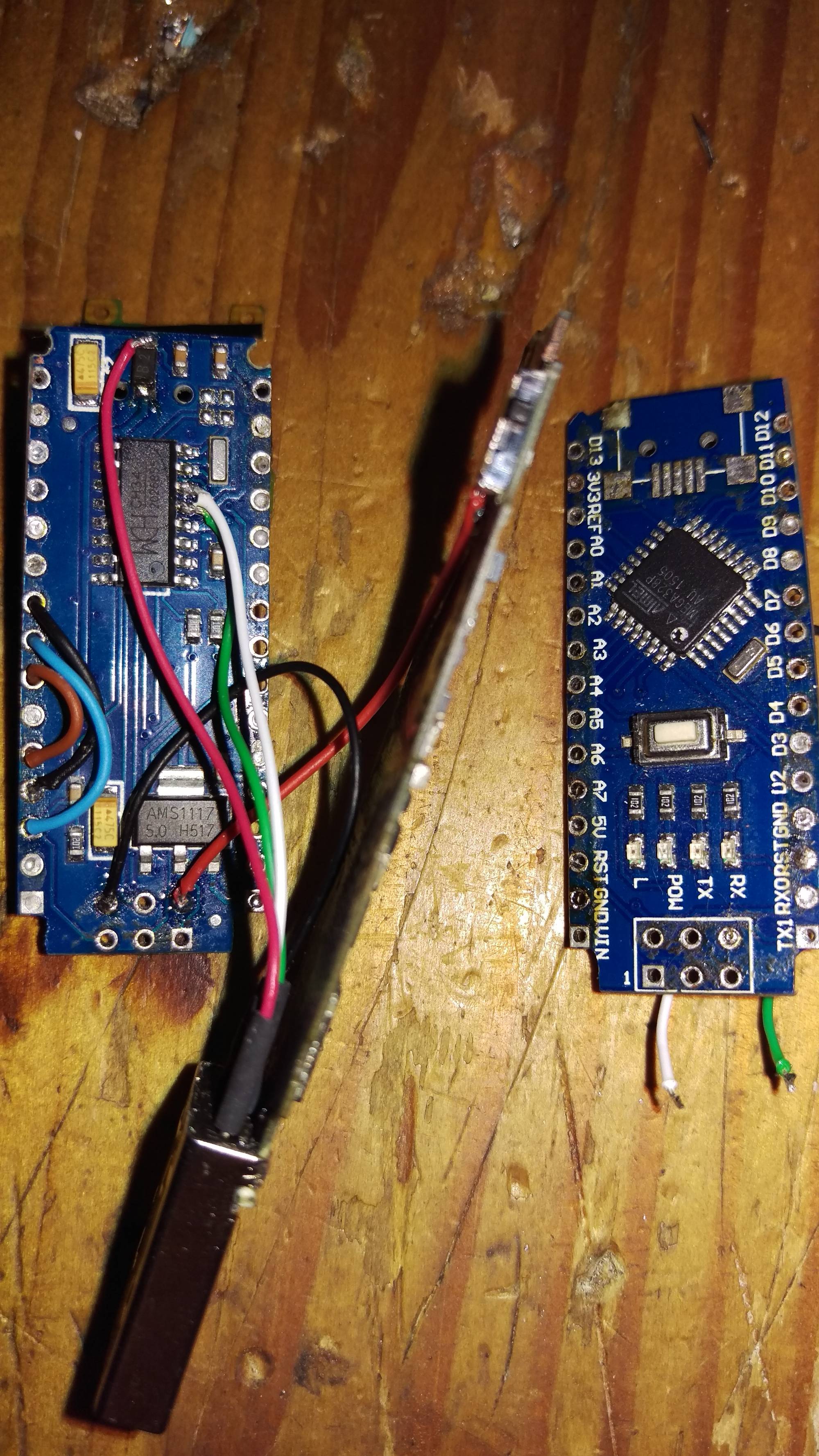

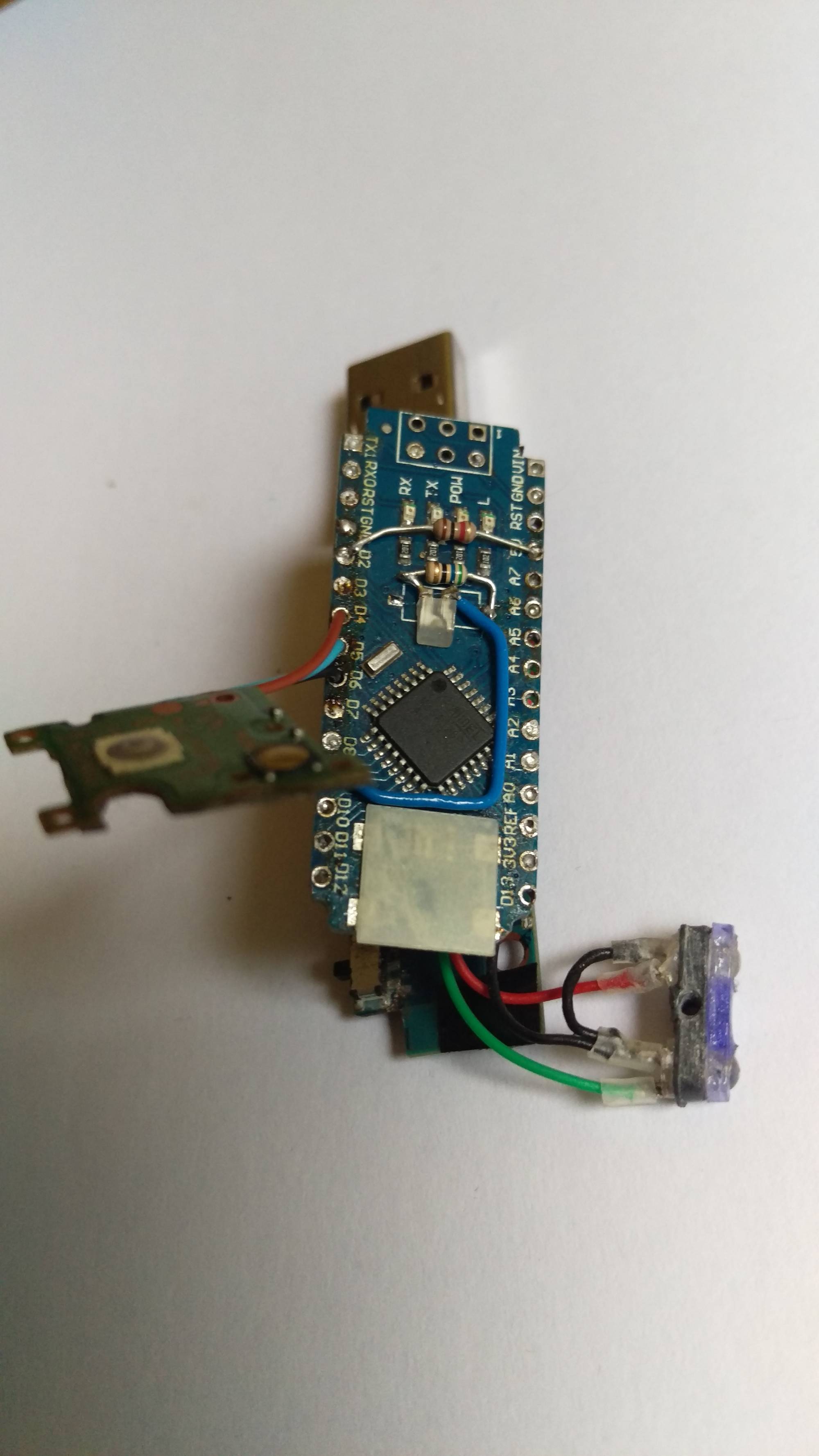

For this project I used an Arduino Nano from Banggood.    Here are some pictures from the project.


Mobirise
